Functional Characteristics：
1, suitable for aluminum alloy, magnesium alloy, copper alloy small parts of the welding, such as automotive, power electronics, such as liquid cooling radiator.
2, High efficient welding of aluminum, magnesium, lead, copper, steel, titanium, Metal Matrix composite, dissimilar metals etc. .
3, can achieve automation, equipment energy consumption, high efficiency, low requirements on the operating environment.
4, no need to add welding wire, no need to protect gas, low cost.
5,No pollution, no smoke, no radiation, safe green.
6. Low residual stress and small welding deformation.
EQUIPMENT FUNCTIONS:
1, equipment equipped with FSW-B800 friction stir welding special control system, can achieve a key type welding operation. 2,5PP582.1043-00 type 10.4-inch LCD touch screen, friction stir welding Chinese HMI interface, using standard industrial CNC programming language, easy welding programming.
3.Manual and automatic welding operation mode.
4. Dual mode control mode of constant displacement and constant pressure.
5. Reliability FSW-AMO-ii centralized lubrication system, realizing the central control intermittent automatic lubrication of each moving shaft.
6. Green energy efficient LED work lighting.
Function parameters:
| Parameter item | PARAMETER INDICATOR: | |||
|---|---|---|---|---|
| Type of equipment | FSW-LM-CS08 | FSW-LM-CM16 | FSW-LM-CL25 | |
| Welding material | Aluminum, copper, steel, titanium | Aluminum, copper, steel, titanium | Aluminum, copper, steel, titanium | |
| Welding thickness | 1~8mm Aluminium Alloy | 2~16mm Aluminium Alloy | 3~25mm Aluminium Alloy | |
| Equipment Size(mm) | 10500X5500X3000 | 15000X6000X3500 | 20500X6500X4000 | |
| Table size(mm) | 8500X3500 | 12500X4000 | 18500X4500 | |
| Welding space(mm) | 1400 | 1400 | 1400 | |
| Welding stroke(mm) | X 轴 | 8000/12000 | 18000/25000 | 35000/50000(可定制) |
| Y轴 | 3500 | 4000 | 4500(可定制) | |
| Z轴 | 500 | 500 | 500 | |
| B轴 | ±5° | ±5° | ±5° | |
| Working speed(mm/min) | X 轴 | 10000 | 10000 | 10000 |
| Y轴 | 10000 | 10000 | 10000 | |
| Z轴 | 1500 | 1500 | 1500 | |
| Maximum spindle speed(rpm) | 2500 | 2000 | 1500 | |

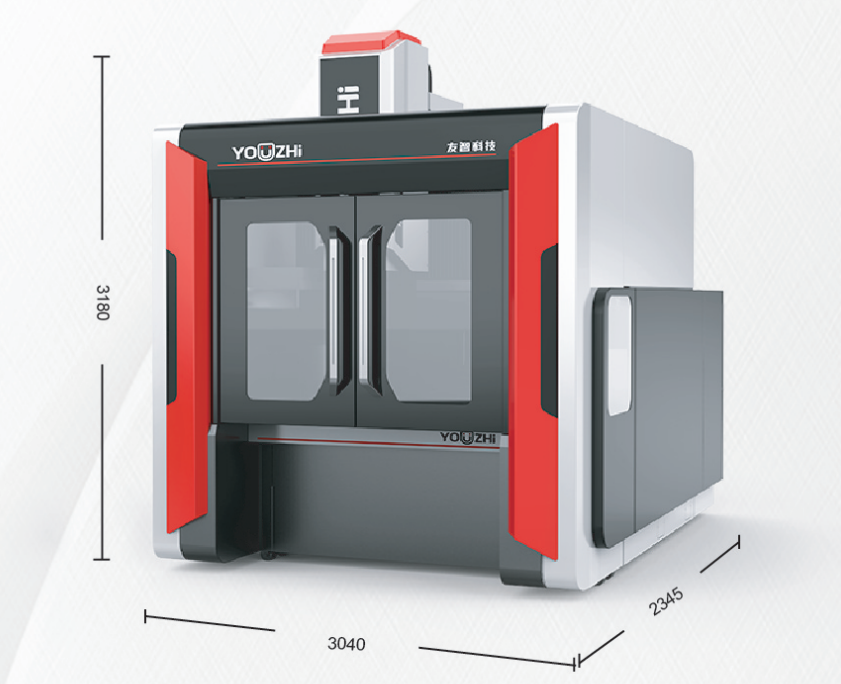

DEVICE DEMONSTRATION:
